Why is the determination of radiated emissions and compliance with the limit values so important?
Due to the ever increasing frequencies in modern electronics, conductor paths are increasingly becoming possible antennas.
The emitted radiated interference can lead to unwanted interference,
which affect the properties of other electronic devices and systems.
The test of the radiated interference emission, e.g. according to the test standard DIN EN 55016-2-3 or CISPR 16-2-3
or in the automotive sector the basic standard DIN EN 55025 / CISPR 25 serves to prove
that the interference radiation emitted by a device or vehicle component
in a frequency range specified by a standard does not affect other devices.
The measurement of radiated emissions is also required as part of the type approval of ESA’s / EUB’s in accordance with UNECE Regulation No. 10 (R10).
Potential sources of interference can be identified and eliminated by measuring the radiated interference emission.
AKUVIB carries out comprehensive EMC emission measurements for you.
Our state-of-the-art facilities and experienced engineers make it possible,
perform accurate EMC emission measurements for a wide range of electronic devices and systems.
If you are looking for accredited EMC emission measurements, you have come to the right place.
Contact us today to find out more about our services
and how we can help you ensure the EMC compliance of your products.
- DIN EN 55016-2-3 / CISPR 16-2-3 – High frequency fields
For electrical components, the quantity to be measured is,
the maximum electric field strength emitted by the test object as a function of the horizontal and vertical polarization
and at heights from 1m to 4m
and circumferentially from 0° to 360°.

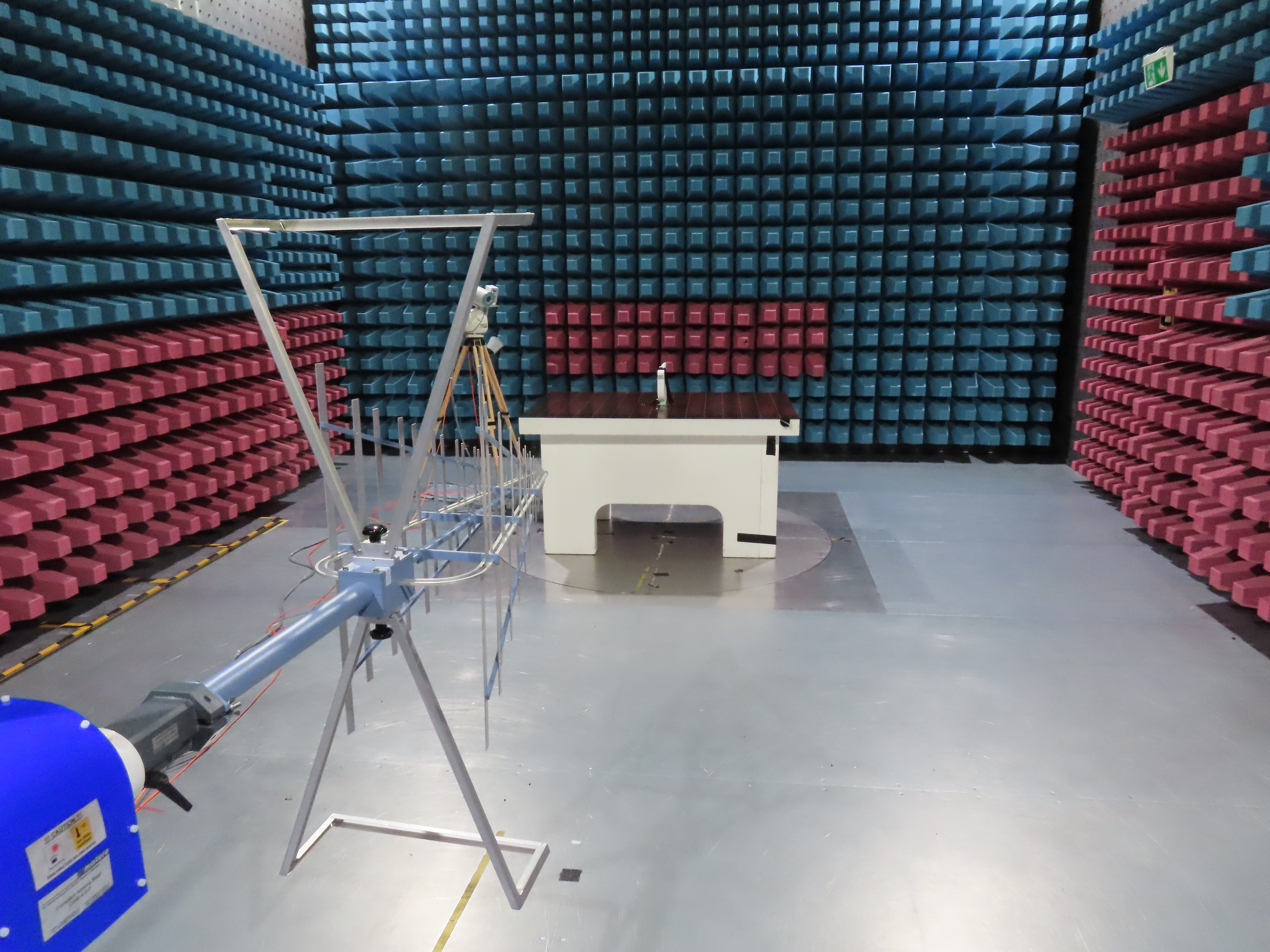

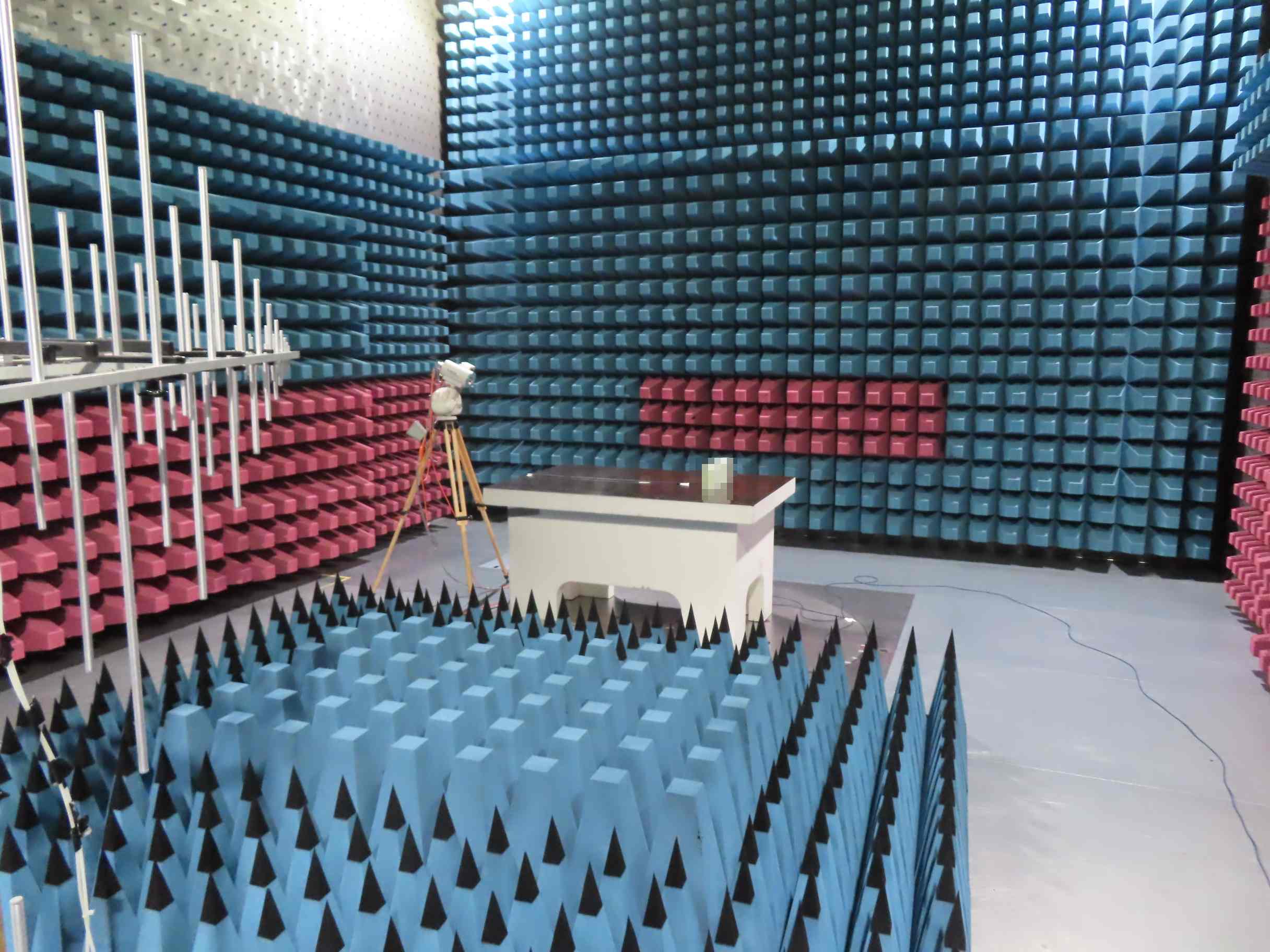

With AKUVIB, measurements are taken at a horizontal distance of 3 m from the test specimen,
whereby the test specimen is rotated horizontally through all angles.
To measure the electric field strength, the height of the antenna above the reflecting surface is varied.
- MIL-STD-461 F / G RE101 – Magnetic fields
This standard is intended to limit low-frequency magnetic fields.
This is intended to protect other systems that operate at very low frequencies.
- DIN EN 55025 / CISPR 25 – High-frequency fields Automotive
In this measurement, the field strength is determined at a horizontal distance of 1 m from the device under test,
whereby the test specimen together with the cable harness is placed on a table with a ground plane.
To measure the electric field strength, the antenna is placed at different positions depending on the frequency.
- Other automotive standards that require measurements of radiated disturbance emissions on components:
- BMW GS 95002-2, GS 95002-3, 95002-5
- MBN 10284-2, 10284-3, 10284-4
- Renault / Nissan 36-00-808
- PSA B 21 7110
- VW TL 81000
- Ford FMC 1278, EMC-CS-2029
- GM GMW 3097
Can’t find the right standard for you?
You will receive an overview of our accredited tests in the Accreditation area with the corresponding standards lists.
Thanks to our flexible accreditation, we can carry out accredited tests according to customer specifications and based on standards.
